Rated dynamic load: 1500 kg
Rated dead load: 1500 kg
Rated travel: 3500mm
Rated speed: 12 m/min
Minimum height: 600 mm

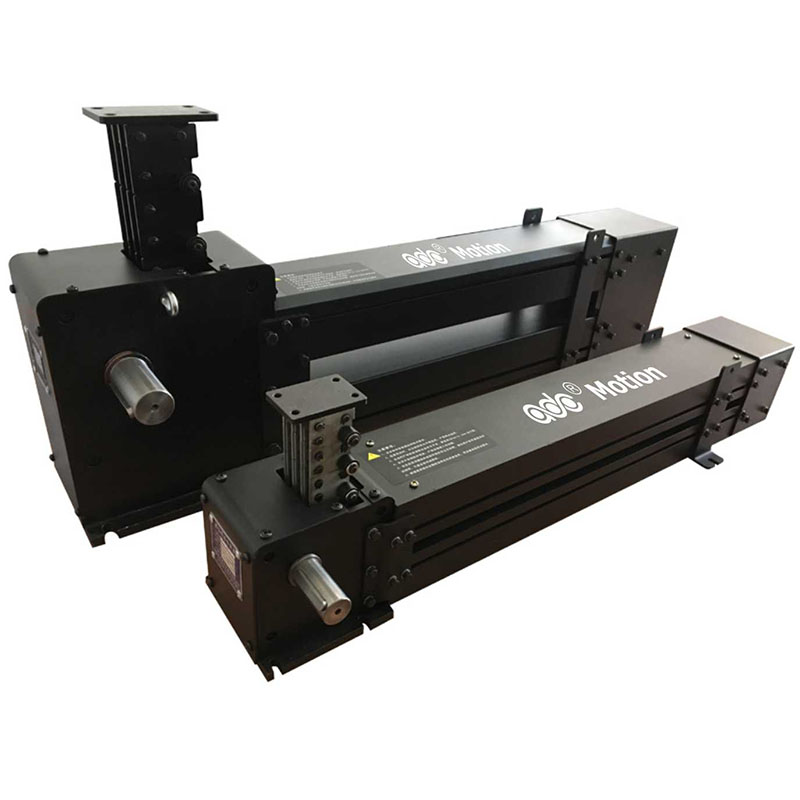

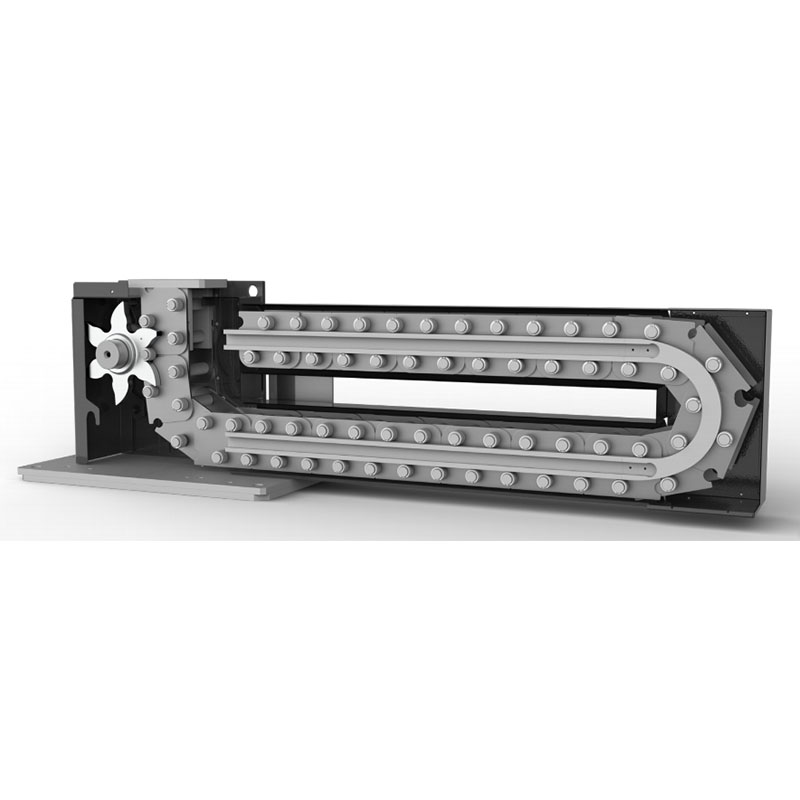

Flexible column type: 16A-S-3662
Reducer model: KA87B-56-SF18-d42
Motor power: 5.5KW
Rafed voltage: 380 volts
Braking voltage: V
Braking form: mofor braking
Platform size: 2.80x1.52 meters





DMX Lift can be customized:
1. Lifting platform size
2. Lifting travel height
3. Load capacity





More videos for reference:
