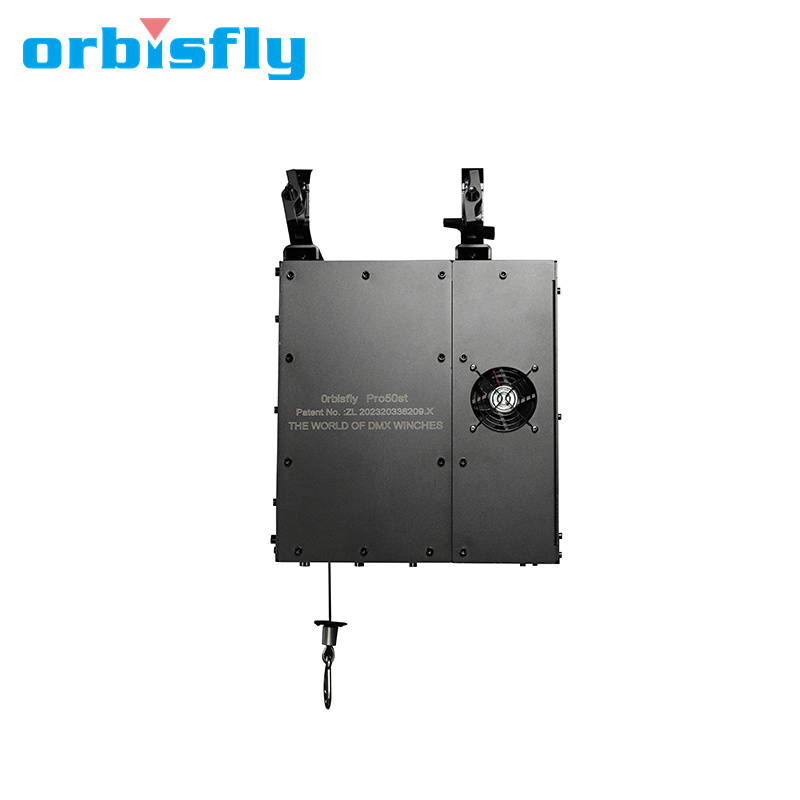

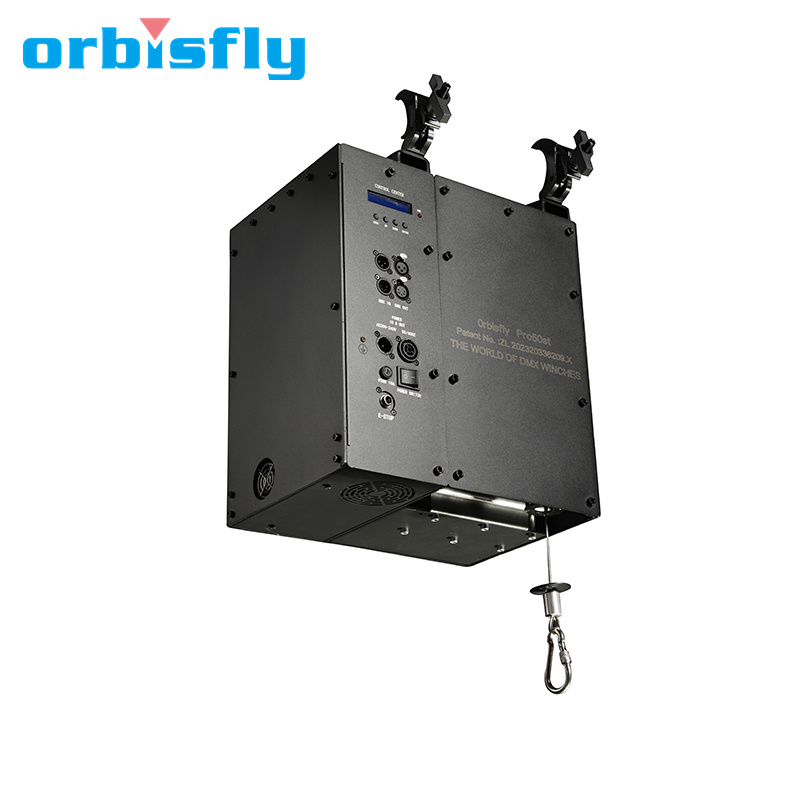

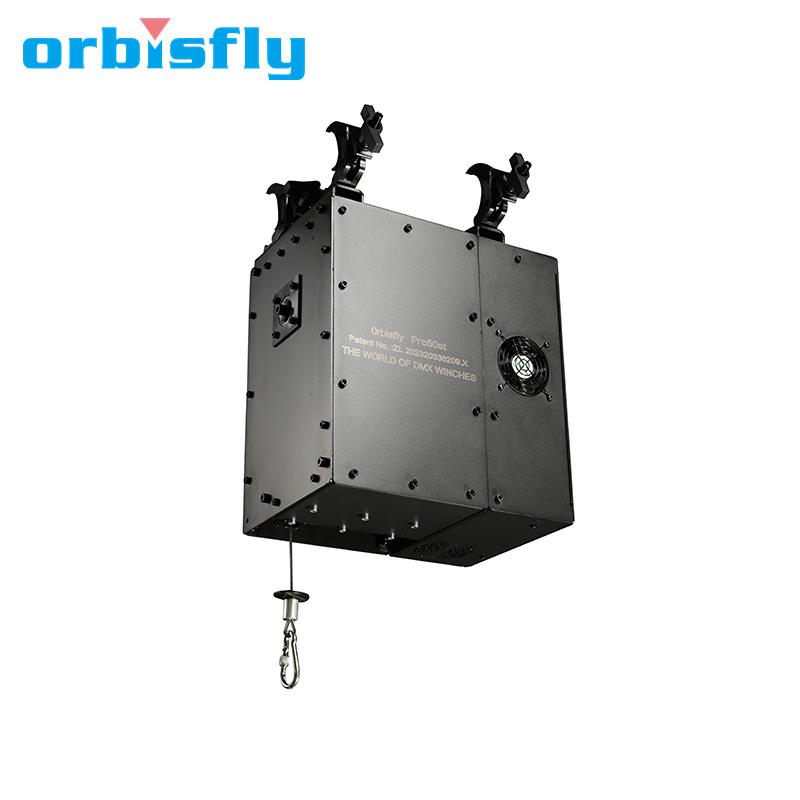

Orbisfly®Pro50st(Winch 50 Single Steel Wire Without Power)
Lifting capacity: 50 kg (110.2 lb)
Lifting height: 12m (40 ft)
Lifting speed: 60cm/s (3.5-23.6 in/s)
Through Connection - Input: Neutrik powerCON TRUE1
Voltage: 200-240V AC
Frequency: 50-60 Hz
Power consumption: 750 W (2,4-2,1 A)
Power inlet: Neutrik powerCON TRUE1 NACPX (F/M)
DMX control signal: DMX 512 1990+DMX512A
DMX channels: 4/5
DMX control connection: 3/5 Pole XLR (F/M)
Snap hook: 2x8 mm (5/16 in) galvanized steel w/Bar 652 mm (25.2 in)
Fleet angle: None
Minimum load: 5 kg (11.02 lb)
Noise emission: ≈50 dB at 1m (3.3 ft)
Ambient temperature: 5-40 °C (41-104 °F)
Mounting clamp: 4 x Slim eye coupler 42-52 mm (2 in)
Motor: 200-230 VAC, 0.75 kW Servo Motor
Lifting wire: 3 mm (1/8 in) 19x7 galv. steel wire (EN 12385-4)
Minimum wire breaking load: 588 kg (5766 N / 1296 lb)
Wire safety factor: >10
Expected wire lifetime - 10 kg (22lb) load: Pending
Expected wire lifetime - 20 kg (44.1lb) load: Pending
Expected wire lifetime - 40 kg (88.2lb) load: Pending
Shipping weight: 172kg(4pcs in 1 flight case)
Weight: 33 kg
