ORBISFLY™ LED Kinetic light

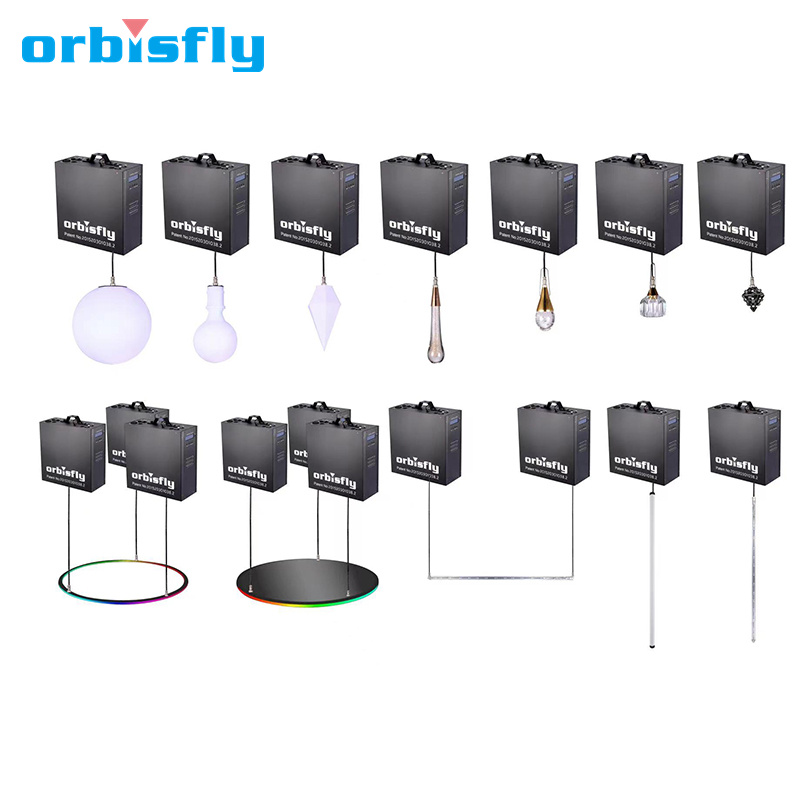

ORBISFLY™ LED Kinetic light famliy

 ES-L28  ORBISFLY™ LED kinetic lighting (Structure Patent:ZL2015 2030 1038.2)]

Video1:v.qq.com/page/j/m/g/j03025xa1mg.html

Video2:v.qq.com/page/j/g/u/j0302lu0mgu.html

Video3:v.qq.com/page/y/6/a/y01900d9x6a.html

Video4:v.qq.com/page/y/k/e/y0190zwjxke.html

New Video5:v.qq.com/x/page/z0382d7w6l0.html  GITEX 2015 Kinetic light show

Video6:v.qq.com/page/m/2/4/m0303rd8q24.html

Video7:v.qq.com/page/z/t/t/z03082tf5tt.html

Video8:v.qq.com/x/page/t0330qdj5hh.html

Video9:v.qq.com/x/page/n0328qp04gd.html

Video10:v.qq.com/x/page/g03281q93i0.html

Video11:v.qq.com/x/page/a03280og7k4.html

Video11:v.qq.com/x/page/c03301xreh6.html

Video12:v.qq.com/x/page/g0303dq48l4.html

Video13:v.qq.com/x/page/c0327pbgfmh.html

Video14:v.qq.com/x/page/b0327w3kg04.html

Video15:v.qq.com/x/page/y0190zwjxke.html

NEW Video16: v.qq.com/x/page/c0390rcsht5.html 2017 Frankfurt PRG Kinetic  light show(FULL)

New Video17:v.qq.com/x/page/h0382153eb8.html

                            www.youtube.com/watch

New Video18:youtu.be/yoDtEs5i930

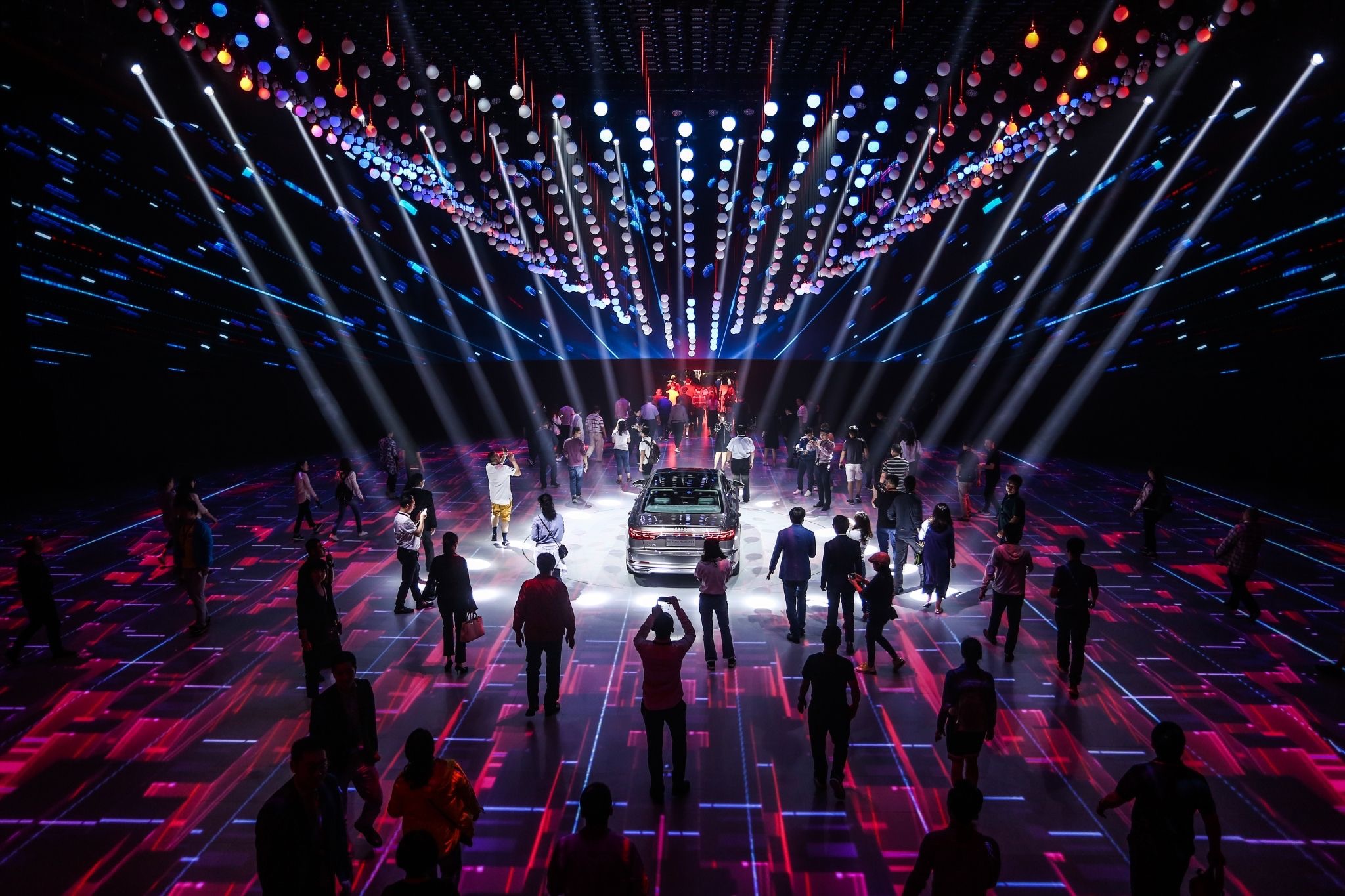

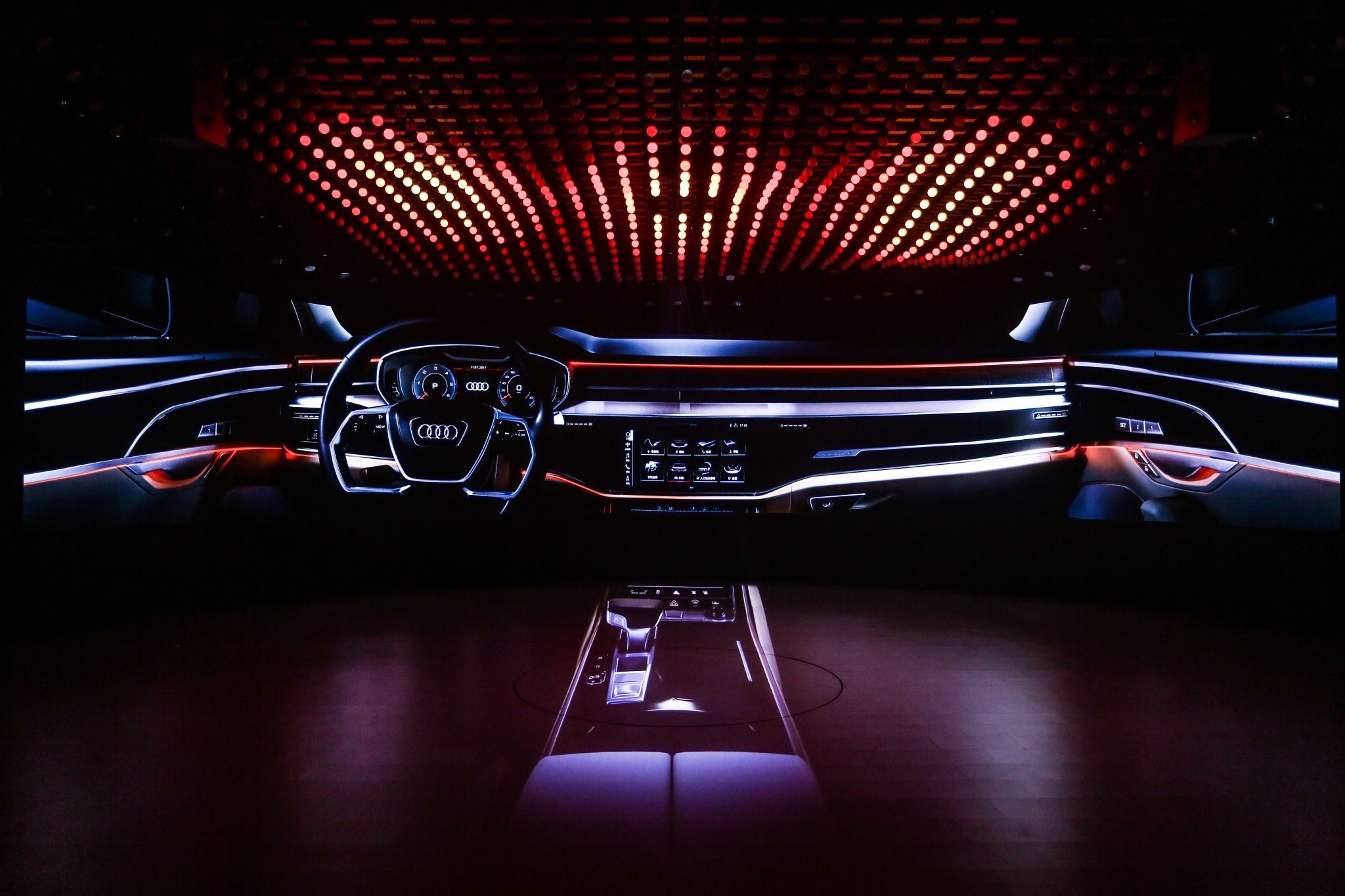

Orbisfly®️kinetic light &Audi new A8L—20180408 Sanya

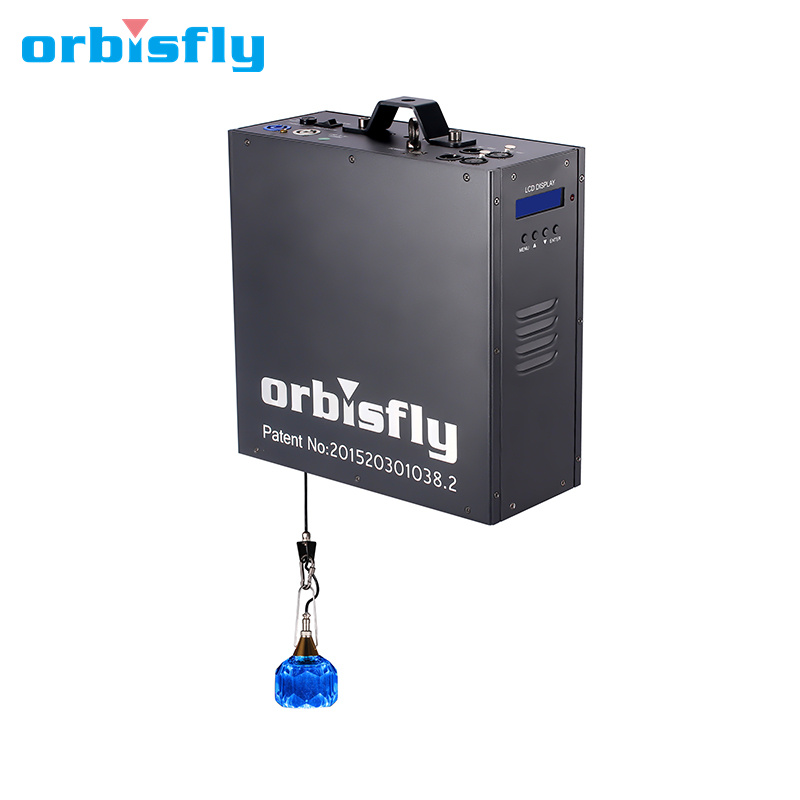

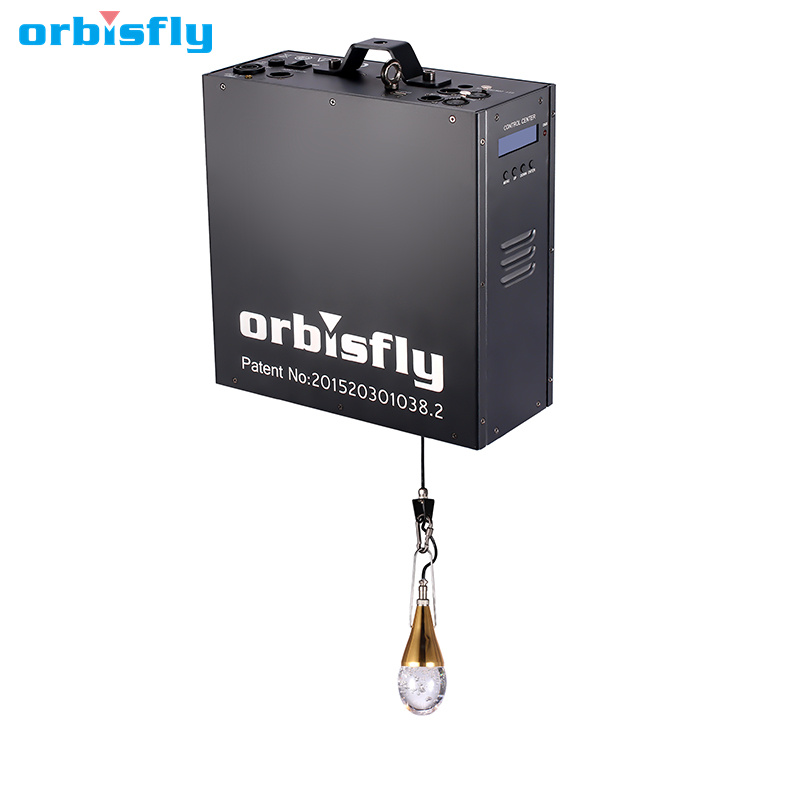

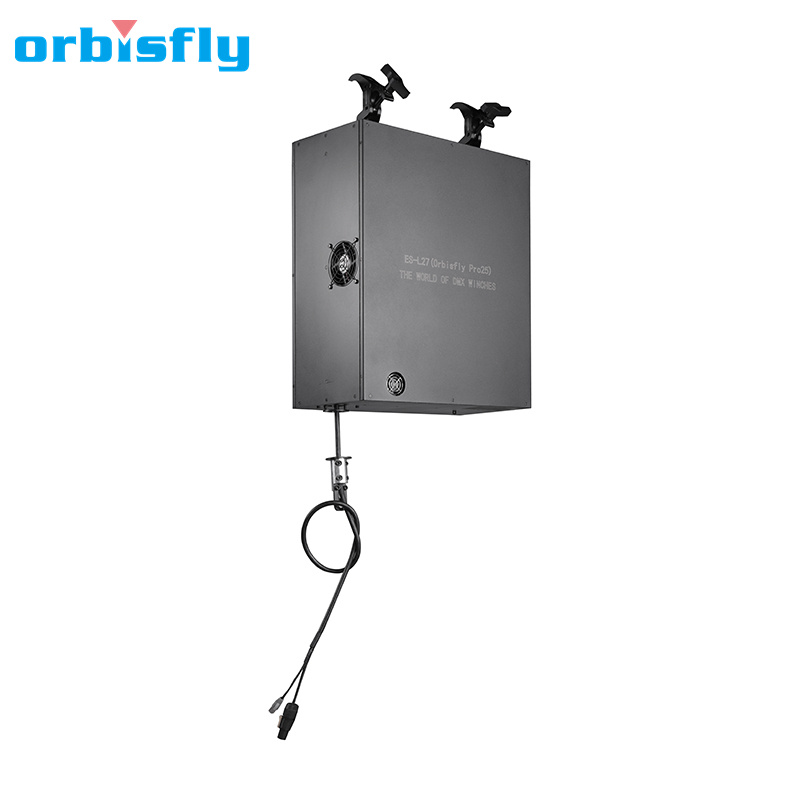

DMX Winch:

Lifting height: 3m/ 6m / 9m / 12m

Lifting speed: 0.75m/s (2018VER)

Load on cable, MAX kg: 2

Net Weight, kg: 6.0 / 8.5 / 10.5

Power consumption, W: 40

Working temperature: 5°- 45°c

DMX channels: 5/9 Channels

Control mode: DMX512 console or Madrix software

Operation menu: LCD1602 SCREEN DISPLAY

Power Connect: Power Con:IN & OUT

DMX  XLR: 5PIN XLR & 3PIN XLR

power supply: 100V-240V AC, 50-60 Hz

power on cable: 4 channels, var. 1-24V DC 1A(max) for ch

Protection rating: IP20

Dimension,LxWxH: 252 X 230 X 125mm (3m winch)

                292 X 292 X 125mm (6m/9m winch)

                324 X 324 X 125mm (12m winch)

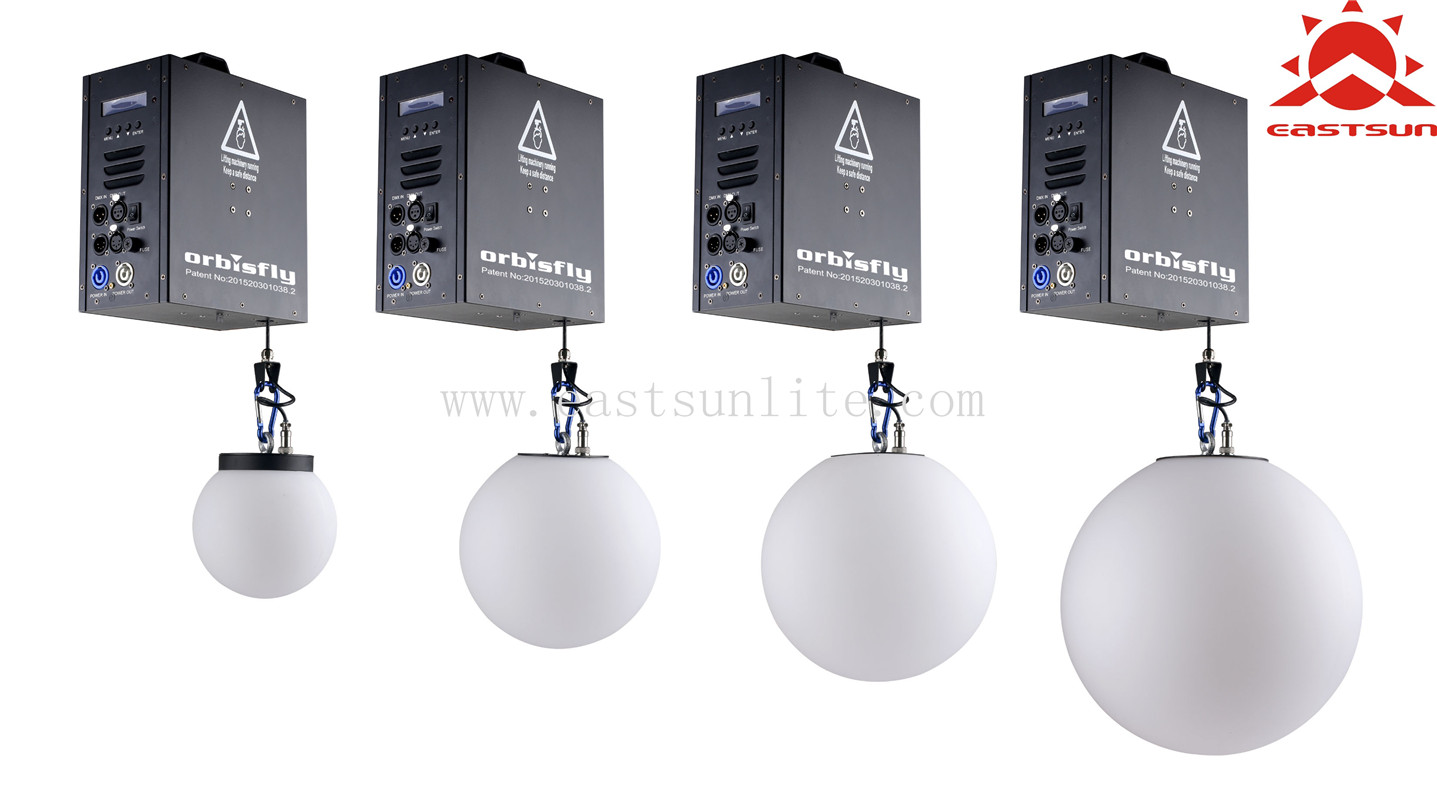

LED Sphere :

Sphere diameter: 150mm/ 200mm/ 250mm/ 350mm

Weight:  0.6~1.5kg

Light source, RGB LEDS: 42PCS TRI SMD

Viewing angle: 360°

Working temperature (t), °c: -10-45

Light diffusing sphere material: white LDPE

Protection rating: IP20

Packing size,mm:

(150mm,60in1)(200mm,12in1)(250mm,12in1),(350mm,1in1)

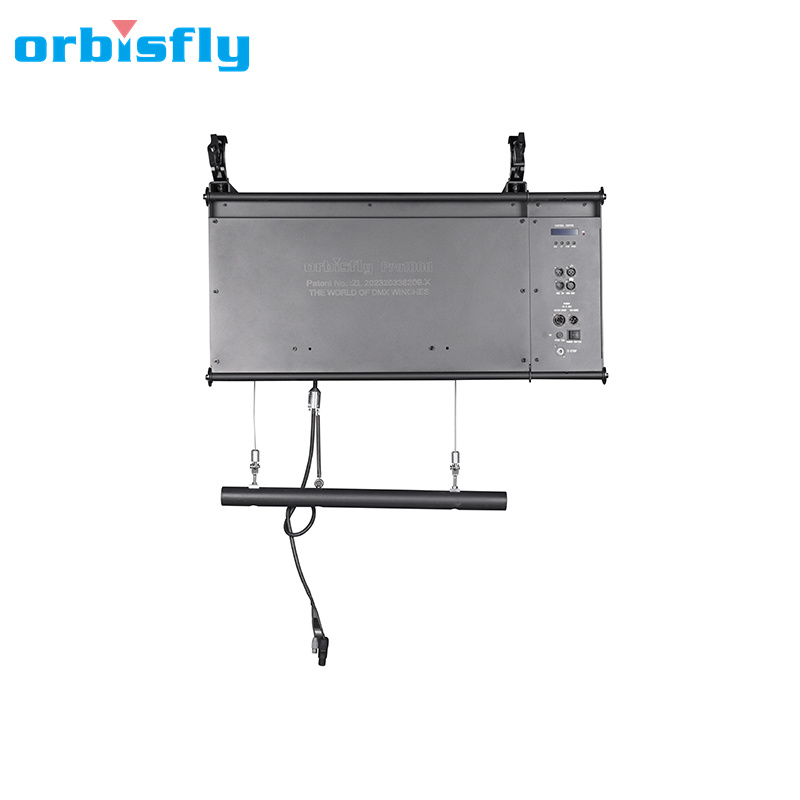

Tube:

Height: 1000mm

diameter: 50mm(Horizontal type)/100mm (vertical type)

Weight: 0.6kg/1.5kg

Light source, RGB LEDS: 48PCS TRI SMD LED/96PCS TRI SMD LED

Viewing angle: 330°/360°

Working temperature (t),  °c: -10-45

Features
Download

 ES-L28 ORBISFLY™ LED kinetic lighting (Structure Patent:ZL2015 2030 1038.2)

Video1:v.qq.com/page/j/m/g/j03025xa1mg.html

Video2:v.qq.com/page/j/g/u/j0302lu0mgu.html

Video3:v.qq.com/page/y/6/a/y01900d9x6a.html

Video4:v.qq.com/page/y/k/e/y0190zwjxke.html

New Video5:v.qq.com/x/page/z0382d7w6l0.html  GITEX 2015 Kinetic light show

Video6:v.qq.com/page/m/2/4/m0303rd8q24.html

Video7:v.qq.com/page/z/t/t/z03082tf5tt.html

Video8:v.qq.com/x/page/t0330qdj5hh.html

Video9:v.qq.com/x/page/n0328qp04gd.html

Video10:v.qq.com/x/page/g03281q93i0.html

Video11:v.qq.com/x/page/a03280og7k4.html

Video11:v.qq.com/x/page/c03301xreh6.html

Video12:v.qq.com/x/page/g0303dq48l4.html



Video13:v.qq.com/x/page/c0327pbgfmh.html

Video14:v.qq.com/x/page/b0327w3kg04.html

Video15:v.qq.com/x/page/y0190zwjxke.html

NEW Video16: v.qq.com/x/page/c0390rcsht5.html 2017 Frankfurt PRG Kinetic  light show(FULL)

New Video17:v.qq.com/x/page/h0382153eb8.html

                                 www.youtube.com/watch

New Video18:youtu.be/yoDtEs5i930

Orbisfly®️kinetic light &Audi new A8L—20180408 Sanya

DMX Winch:

Lifting height: 3m/ 6m / 9m / 12m

Lifting speed: 0.75m/s (2018Ver)

Load on cable, MAX kg: 2

Net Weight, kg: 6.0 / 5.5 / 8.5

Power consumption, W: 40

Working temperature: 5°- 45°c

DMX channels: 5/9 Channels

Control mode: DMX512 console or Madrix software

Operation menu: LCD1602 SCREEN DISPLAY

Power Connect: Power Con:IN & OUT

DMX  XLR: 5PIN XLR & 3PIN XLR

power supply: 100V-240V AC, 50-60 Hz

power on cable: 4 channels, var. 1-24V DC 1A(max) for ch

Protection rating: IP20

Dimension,LxWxH: 252 X 230 X 125mm (3m winch)

                292 X 292 X 125mm (6m/9m winch)

                324 X 324 X 125mm (12m winch)

LED Sphere :

Sphere diameter: 150mm/ 200mm/ 250mm/ 350mm

Weight:  0.6~1.5kg

Light source, RGB LEDS: 42PCS TRI SMD

Viewing angle: 360°

Working temperature (t), °c: -10-45

Light diffusing sphere material: white LDPE

Protection rating: IP20

Packing size,mm:

(150mm,60in1)(200mm,12in1)(250mm,12in1),(350mm,1in1)

Tube:

Height: 1000mm

diameter: 50mm(Horizontal type)/100mm (vertical type)

Weight: 0.6kg/1.5kg

Light source, RGB LEDS: 48PCS TRI SMD LED/96PCS TRI SMD LED

Viewing angle: 330°/360°

Working temperature (t),  °c: -10-45
