LED Moving head
Magic Dot™

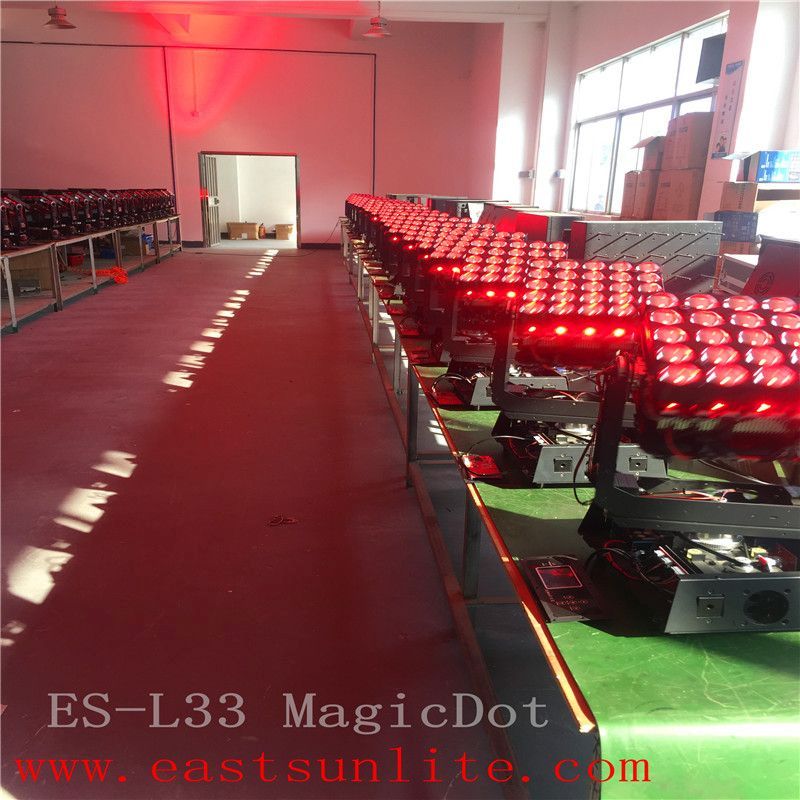

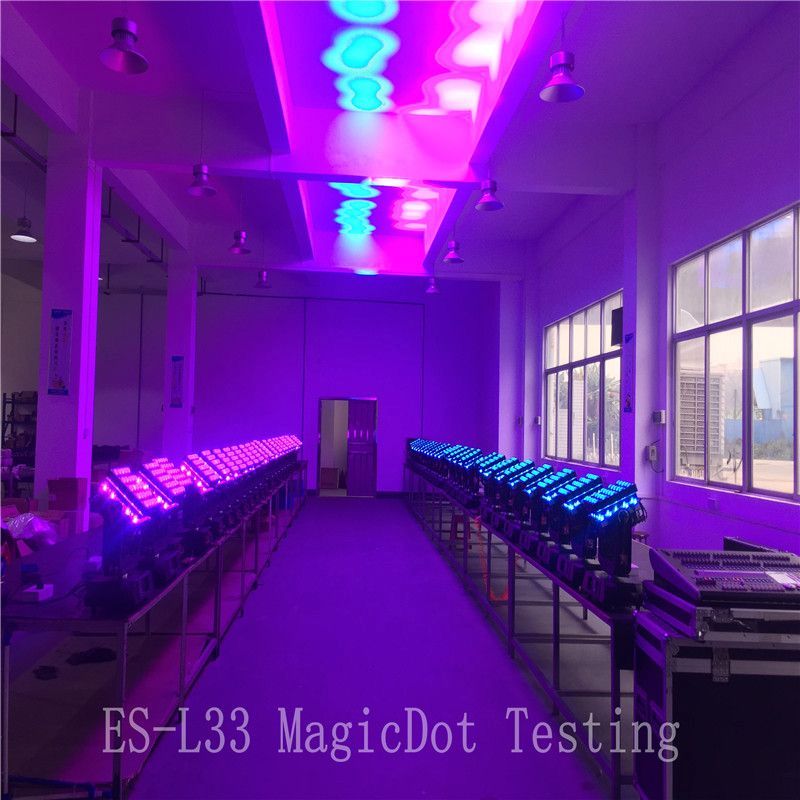

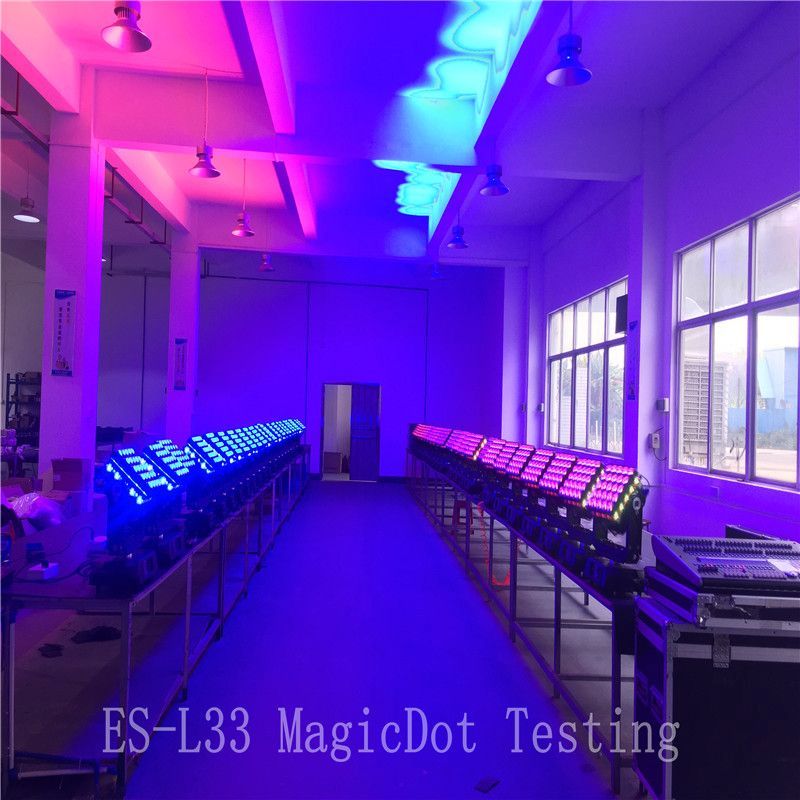

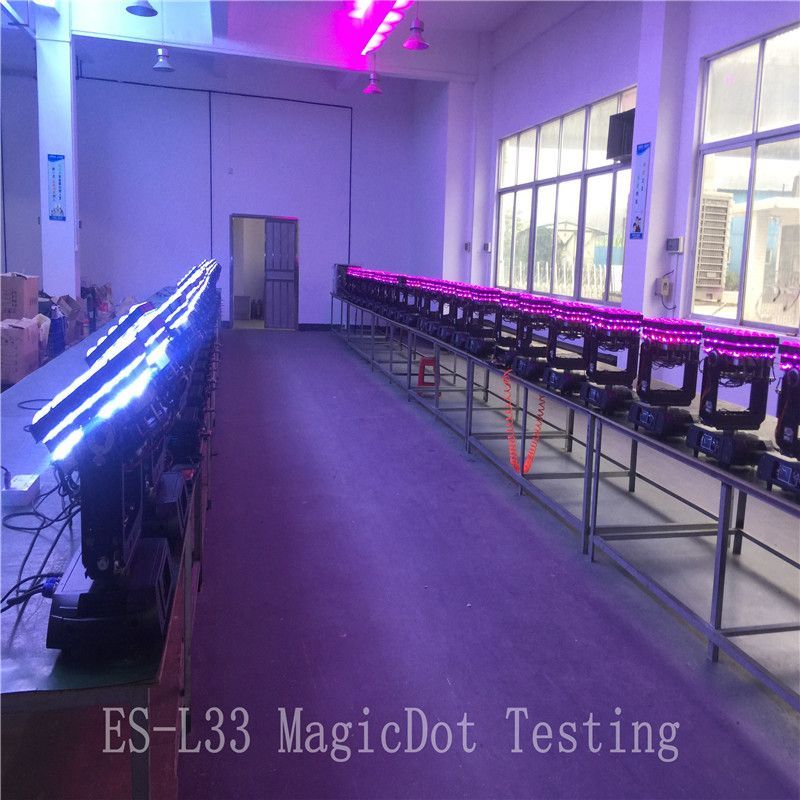

 ES-L33   Magic Dot™

 SOURCE


Light source type: 25x 15 W RGBW multichips
Fixture total lumen output: 7.000 lm
Light output: 15.000 lx @ 5 m
LED life expectancy: minimum 20.000 hours
Typical lumen maintenance: 70% @ 20.000 hours
ELECTROMECHANICAL EFFECTS

High efficient component optics
Optical lenses with compensated colour aberration
Zoom range : 8°-48°
9 independently controllable beam effect engines, creating dynamic rays of microbeams in the air
Individual control of each RGBW pixel
Colour mixing system: RGBW/CMY
Variable CTO
Virtual colour wheel with pre-programmed: 237 colours including whites (2.700 K, 3.200 K, 4.200 K, 5.600 K, 8.000 K)
Tungsten lamp effect at whites 2700 K and 3200 K (red shift and thermal delay during dimming)
Colour rainbow effect with variable speed
Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and directions
High resolution dimmer: 0-100%
Strobe effect: variable speed (max. 20 flashes per second)
Preprogramed random strobe & pulse effects
CONTROL AND PROGRAMMING


Protocols: USITT DMX-512, RDM
Control channels: 19, 24, 124
Protocol modes: 3
Programs: 3 editable programs, each up to 100 steps
Stand alone operation
Display: TFT touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC
Pan/Tilt resolution: 16 bit
Zoom: 8 bit
R,G,B,W colour mixing (internal 18 bit): 8 or 16 bit
Dimmer (internal 18 bit): 8 or 16 bit
Ethernet port: Art-Net, sACN, Kling-Net
Ethernet switch: 10/100 Mbps: 1 x In/1 x Out
Data in/out: Locking 3-pin & 5-pin XLR
Built-in analyser for easy fault finding
THERMAL SPECIFICATION

Maximum ambient temperature: 40 °C (104 °F)
Maximum surface temperature: 80 °C (176 °F)
ELECTRICAL SPECIFICATION

Power supply: Electronic auto-ranging
Input voltage: 100-240 V AC, 50-60 Hz
Power consumption: max. 400 W
Power in: Neutrik PowerCon True1
APPROVALS

cETLus (pending)

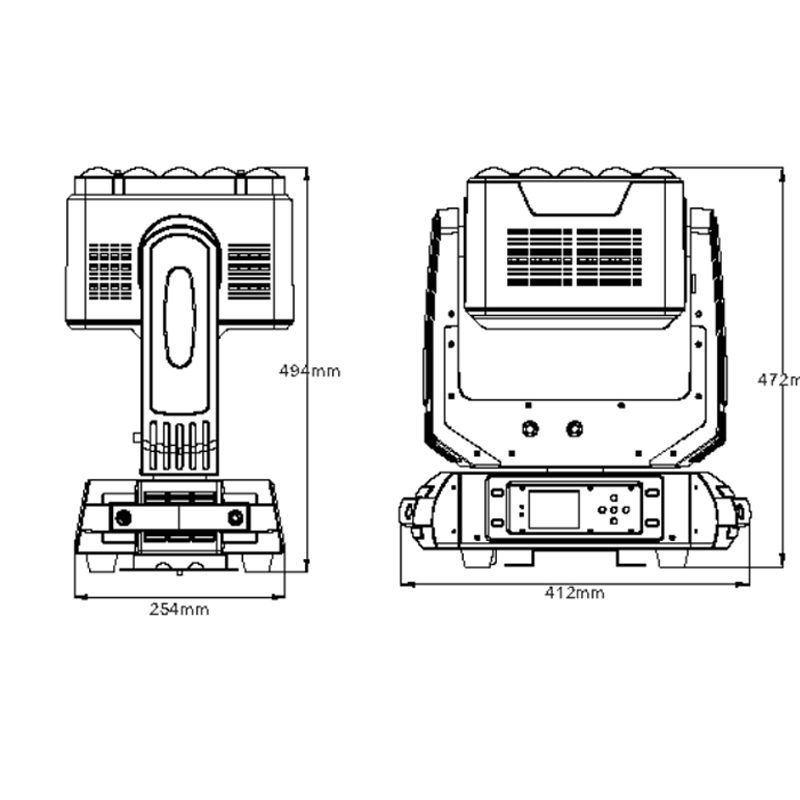

MECHANICAL SPECIFICATION

Height:494 mm
Width: 254mm
Depth: 412mm
Weight: 16 kg
MOVEMENT

Pan movement range 360° with continuous rotation control
Tilt movement range 360° with continuous rotation control
16 bit movement resolution
Automatic Pan/Tilt position correction
RIGGING

Mounting points: 2 pairs of 1-turn locks
Omega brackets: 2x Omega bracket with 1-turn quick locks



Features
Download

 ES-L33   Magic Dot™

SOURCE


Light source type: 25x 15 W RGBW multichips
Fixture total lumen output: 7.000 lm
Light output: 15.000 lx @ 5 m
LED life expectancy: minimum 20.000 hours
Typical lumen maintenance: 70% @ 20.000 hours
ELECTROMECHANICAL EFFECTS

High efficient component optics
Optical lenses with compensated colour aberration
Zoom range : 8°-48°
9 independently controllable beam effect engines, creating dynamic rays of microbeams in the air
Individual control of each RGBW pixel
Colour mixing system: RGBW/CMY
Variable CTO
Virtual colour wheel with pre-programmed: 237 colours including whites (2.700 K, 3.200 K, 4.200 K, 5.600 K, 8.000 K)
Tungsten lamp effect at whites 2700 K and 3200 K (red shift and thermal delay during dimming)
Colour rainbow effect with variable speed
Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and directions
High resolution dimmer: 0-100%
Strobe effect: variable speed (max. 20 flashes per second)
Preprogramed random strobe & pulse effects
CONTROL AND PROGRAMMING


Protocols: USITT DMX-512, RDM
Control channels: 11, 25, 126
Protocol modes: 3
Programs: 3 editable programs, each up to 100 steps
Stand alone operation
Display: TFT touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC
Pan/Tilt resolution: 16 bit
Zoom: 8 bit
R,G,B,W colour mixing (internal 18 bit): 8 or 16 bit
Dimmer (internal 18 bit): 8 or 16 bit
Ethernet port: Art-Net, sACN, Kling-Net
Ethernet switch: 10/100 Mbps: 1 x In/1 x Out
Data in/out: Locking 3-pin & 5-pin XLR
Built-in analyser for easy fault finding
THERMAL SPECIFICATION

Maximum ambient temperature: 40 °C (104 °F)
Maximum surface temperature: 80 °C (176 °F)
ELECTRICAL SPECIFICATION

Power supply: Electronic auto-ranging
Input voltage: 100-240 V AC, 50-60 Hz
Power consumption: max. 400 W
Power in: Neutrik PowerCon True1
APPROVALS

cETLus (pending)


MECHANICAL SPECIFICATION


Height:494 mm
Width: 254mm
Depth: 412mm
Weight: 16 kg
MOVEMENT

Pan movement range 360° with continuous rotation control
Tilt movement range 360° with continuous rotation control
16 bit movement resolution
Automatic Pan/Tilt position correction
RIGGING

Mounting points: 2 pairs of 1-turn locks
Omega brackets: 2x Omega bracket with 1-turn quick locks
