ORBISFLY™ LED Kinetic light

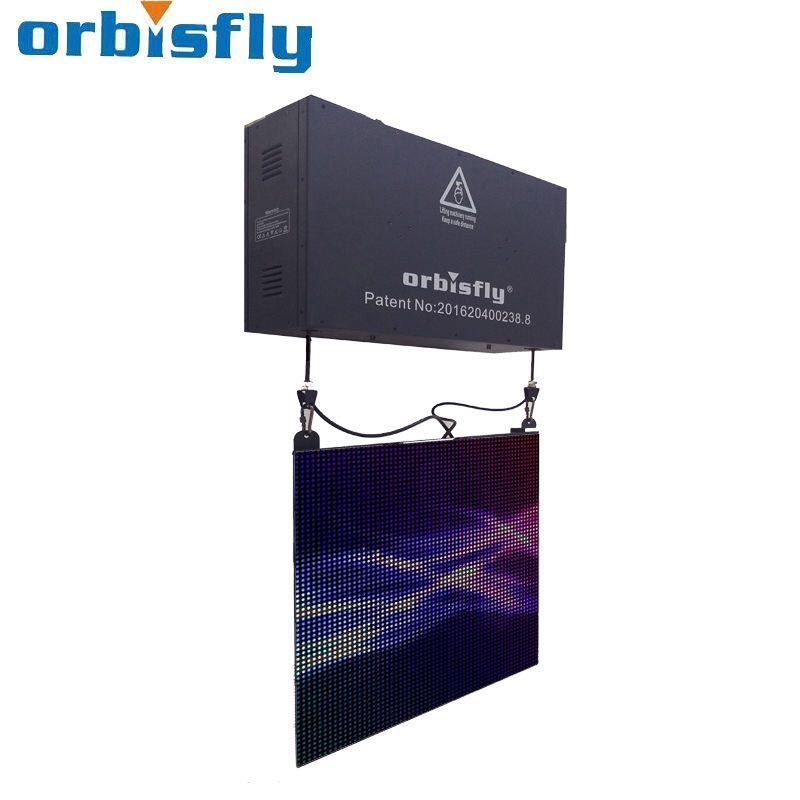

ORBISFLY Kinetic LED Screen

ES-L43 ORBISFLY Kinetic LED Screen

Video：v.qq.com/x/page/q0327oyb72d.html

Video_Test: v.qq.com/x/page/w0361p343i3.html

www.facebook.com/eastsunlite/videos/1843347499256592/

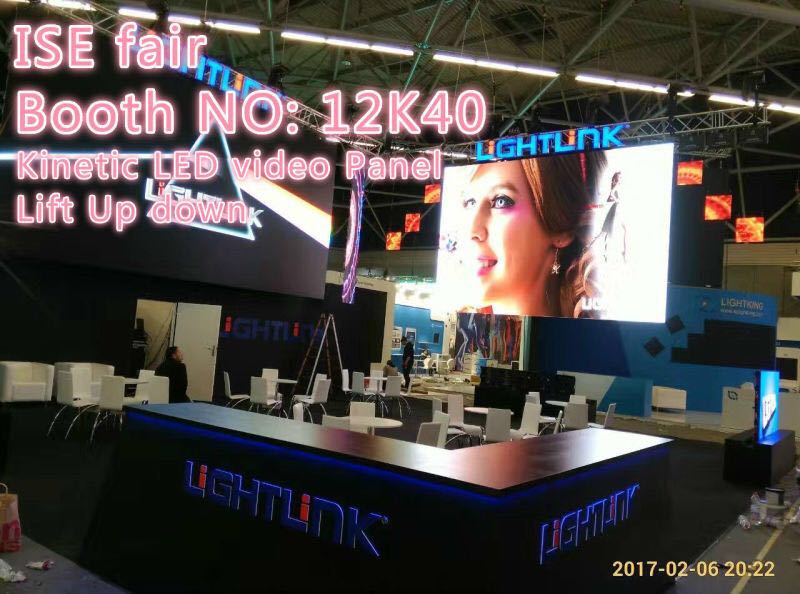

2017 Get show

www.youtube.com/channel/UCwCEic2FDGWvp1fo_JfvDZw

v.qq.com/x/page/h0380leez3m.html

v.qq.com/x/page/r0380jrjafa.html

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

Multi-chip RGB LED

SMD2020（Black LED）

Viewing angle: Lambertian emitter (120°)

Pixel resolution: 128 x 128

Pixel pitch (mm): 3.9

Pixel population: 16,384

Brightness (nit or cd/m2): 2,500

Rated sources life: up to 50,000 hours

Flicker free sources management, suitable for TV applications and all video recorded events

MOVEMENT

Continuous pan and tilt rotation

Extremely accurate positioning

Moving-head operated via either 8 or 16 bit resolution

High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.

Pan and tilt automatic repositioning

COLOURS

16.7 million colours

8 bit colour control

14 bit internal colour control

Colour calibration of each pixel to achieve a perfect colour evenness of the entire panel

DIMMER / STROBE

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation

White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FACILITIES

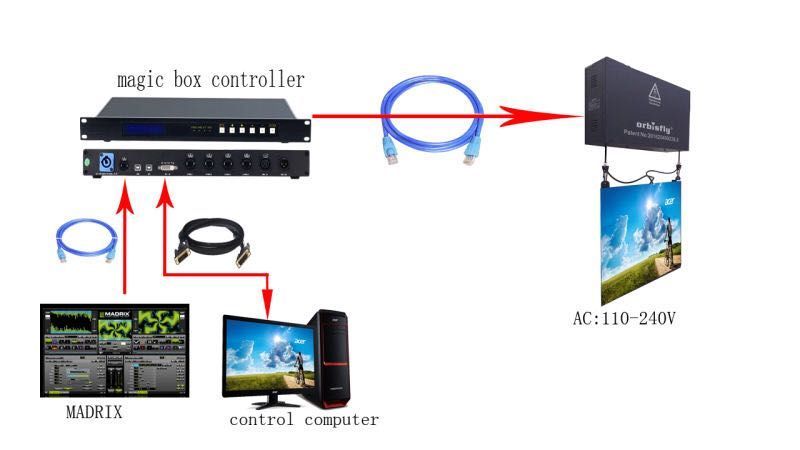

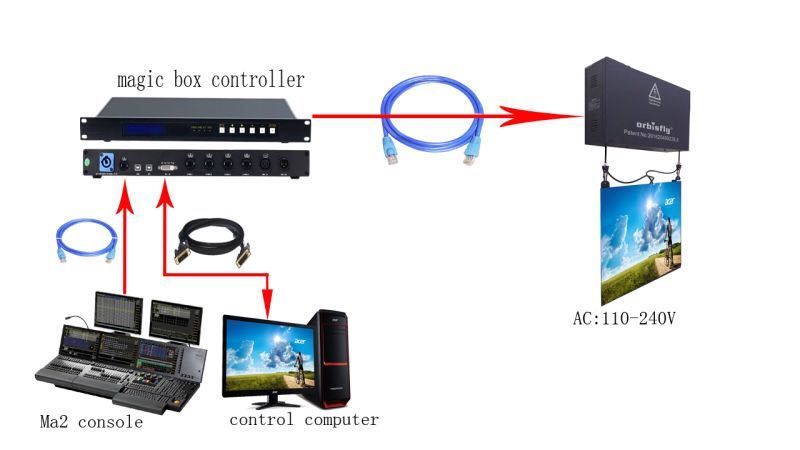

Panel software facilities access via MagicPANEL Magic-BOX controller

Geometric panel configuration via HDMI MagicPANEL MANAGER

DVI & HDMI video format ingress via MagicPANEL Magic-BOX controller

System fully compatible with all media systems (media server) with scale-downed image size (scaling mode) and image rotation capabilities via MagicPANEL HD-BOX controller

Internal software update via MagicPANEL Magic-BOX controller

Local DMX addressing of the luminaire and its optional parameters through its built-in LCD panel control

Remote DMX addressing of the luminaire and its optional parameters through a standard RDM DMX controller

Information menu including hour counter, temperature, software version

HARDWARE FACILITIES

Graphic LCD display for addressing and special functions settings, with flip function

6 menu buttons to set the functions

Over temperature protection

Ethercon RJ45 IN / OUT connectors for ArtNet connection

Neutrik HDMI 1.3a IN / OUT connectors for HDMI connection

PowerCON TRUE1 male and female connectors for power connection

CONTROL

DMX 512 via ArtNet protocol only

DMX-RDM compatible

Local control panel, with LCD display

ArtNet protocol through Ethernet cable

HDMI through Neutrik HDMI 1.3a connectors

Choice of 2 DMX modes (from 6 to 18 DMX channels)

POWER SUPPLY

Electronic supply with active PFC

110 to 240 Volts – 50/60Hz

Power 300 Watt max

COOLING SYSTEM

Advanced cooling system

Self adjusting variable speed fans for quiet operation

Selectable ventilation user’s modes

Safety protection against temperatures excesses

HOUSING

Moving-head skeleton made of aluminium and steel metal plates

Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)

Two sides handles for transportation

Four strong wide feet for better stability

IP20 protection rating

Exterior finish: black (Carbon)
